Name: High Temperature Hot Melt Colorful Glazed Glass Mosaic Furnace
Brand: Yixing Sunny Furnace Co., Ltd
SKU: Nichtstandardisierte kundengebundene Ausrüstung
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Maximale Nutzungstemperatur: 1000°C

Ofenlänge: 26 bis 60 m

Kammerbreite: 500 bis 1500 mm

Rollendurchmesser: Ø50 mm

Allgemeine Temperatur: ≤900℃

Zertifikat: Ce

Grundinformation

Herkunftsort: Jiangsu, China

Markenname: Yan Yang Tian

Zertifizierung: CE

Modellnummer: Nichtstandardisierte kundengebundene Ausrüstung

Zahlung und Versand AGB

Verpackung Informationen: Exportverpackung oder Übereinstimmung der Anforderung des Kunden

Lieferzeit: Verhandelbar

Zahlungsbedingungen: T/T, L/C, Western Union

Versorgungsmaterial-Fähigkeit: 5 Set/Sets pro Monat

Galerie

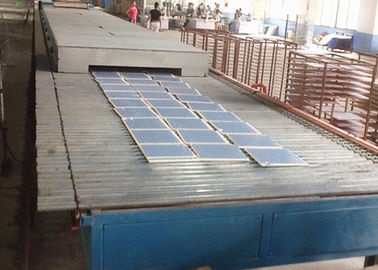

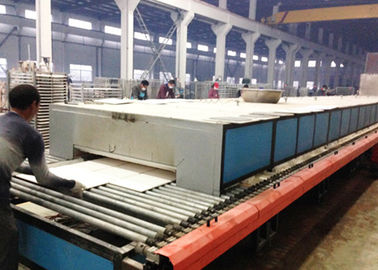

High Temperature Hot Melt Colorful Glazed Glass Mosaic Furnace

Produkt-Beschreibung

High Temperature Hot Melt Colorful Glazed Glass Mosaic Furnace with PID Intelligent Control

1, Production line description

The whole production line equipment composition: ball mill, vibrating screen, mixing mixer, tablet press, sintering furnace and other equipment.

The finished product is Colored glazed glass mosaic, also known as mother color crystal glass mosaic, is a new type of mosaic glass product popular in recent years.

2, Parameter attribute table

The main technical parameters
Furnace length	26-60m
Chamber width	500-1500mm
Roller diameter	Ø50mm
Temperature control precision	±1℃
Maximum use temperature	1000℃
Transfer method	Helical gear drive
Heating mode	Electric heating
Control mode	PID intelligent control system, multipoint control
Common temperature	≤900℃
Daily output (24h)	50-600 square meters / day
Roller speed	Frequency control
Roller material	stainless steel rollers and high-temperature ceramic rollers in different parts of the Furnace as required
Furnace structure	Modular; on-site assembly

3, Product purpose

Non-standard customized complete equipment, mainly used for the continuous production of hot-melt color glazed glass mosaic

The colored glazed glass mosaic is made of flat white glass (broken glass) after grinding, filtering, adding certain color materials, stirring and pressing the tablet machine into various sizes of plain tablets, sintering in the furnace, and then forming

High Temperature Hot Melt Colorful Glazed Glass Mosaic Furnace 0

4, Product advantages

The hot-melt color glazed glass mosaic produced by the glass furnace has a strong three-dimensional sense, the color is bright and transparent, and does not fade.

Our company provides a full set of technology and equipment for the production of hot-melt colorful glazed glass mosaics. Please contact us for specific details, we will tailor it for you!
